■ Bench-top, compact model, 135℃, 2.5 bar pressure/vacuum.
■ Safety-first for human-being, & for materials!
■ Highest-quality, multifunction, long-lasting life, low operate
■ Ideal for glass, instruments, liquids, culture media, pipets/tips,
porous material & waste

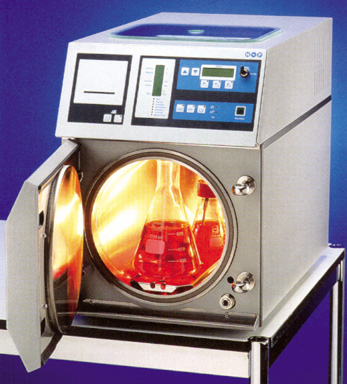

The VARIOKLAV™ 250T benchtop sterilizer ensures fast,
safe and reproducible processing.
All components and expansion options are built for a long useful life,
ensuring problem-free routine operation.
특징 (Features)
* 유리, 기구, 액체, Culture media, 피펫/팁, 다공성 물질 등에 적합.
* Titanium-stainless chamber로 무한대의 수명 : 5년 보증
* Human-being first! Material-safety!
ㆍ “Fuzzy-logic” 인공지능식 program microprocessor controls with EP-types
ㆍ No heat-injuries by hot-components
ㆍ No scalding hazard by rising steam
ㆍ No feed water in the chamber
ㆍ No corrosion of titanium-stabilized stainless steel chamber
* 인체공학적 설계와 Compact-slim Design의 Harmonized Construction
* Double-wall, (and/or vacuum & drying mechanism)
* Self-locking & Easy Program / Operation System
ㆍ Finger-tip lack, microprocessor controlled, self-calibration
ㆍ 3×pre-defined program keys, & easy program selection
ㆍ Week-day timer function
* Fast-working :
ㆍ 짧은 예열시간, 짧은 멸균시간(일반 기구들의 멸균시간은 약 15분)
ㆍ Double wall, interval steam / low-process
ㆍ Fast recooling & fast drying : 관리운영비의 최소화
* Data network :
ㆍ RS-232 interface for external printer or PC
ㆍ Batch-printer 장착가능(Option)

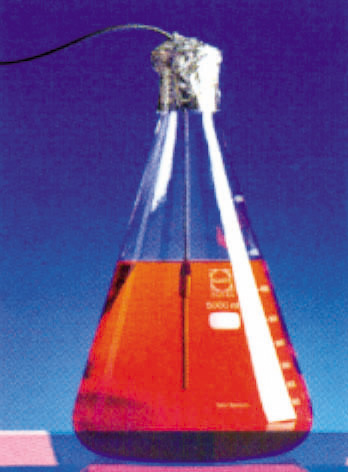

* “THERMOLOCK” system :
ㆍ Liquids / media 등의 멸균 작업시 액상시료의 온도가 80℃이하로 식기 전에는
Lid(문)이 열리지 않는 특수 장치임.
규격 (Specifications)
* Temp. & pressure (max.) : 135℃, 2.5 bar pressure / vacuum

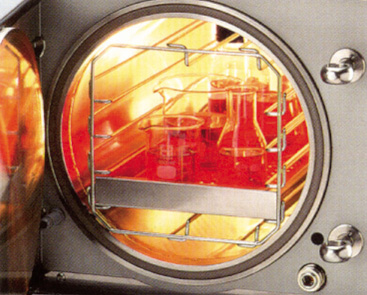

* Large chamber usable volume : 25 Lit., Φ2.55×L500 mm
* External dimensions : w385×d680×h530 mm, 70kg weight
* Power : 230V, 50Hz, 3.2kW
* Standard VARIOKLAV™ 250T의 기본 구성품들 :
Basic unit, Double-wall, THERMOLOCK, Auto-locking system, fully automatic Control
unit with timer, Pneumatic door seal, 3 preset programs, Insert tray, Storage tank,
Compressed-air supply, Separate condensate removal, Joint connection & RS 232 interface
※ Drying system in a stream of Steride-Air(Option)
멸균 종료시, 멸균여과된 Hot pressure Air에 의해서 신속한 건조가 이루어지며,
이는 초자기구, 일반기기 및 Pipets용에 효과적임.
※ Ideal Vacuum system for best-sterilization(Option)
Powerful heated vacuum pump에 의해서 exhaust-air를 제거하여 신속하고도 이상적인
멸균작업이 완료됨. 이는 특히 Porous-items (다공성 제품들 : Filters, Laundry,
Small Diameter Tubing Products or Waste)용에 적합함.
※ 자유로운 Modular Function / Setting-up type임.
Ex.: Media temperature control unit, “RM” water jacket recooling unit,
Batch printer, “TL” Drying system, “VP” vacuum pump, ...
|
