오염
Gas배출 Duct-system이 없는(Don’t
Need) 무공해-Fume Hood !?
그 해답(Solution)은, “Safelab”의
“Clean Filtration-Fume Hood”에서
!!
Clean Labs/대기오염방지/Save
Energy/배출설비건축비
절약/Save Space !!
by “COSHH”-Control of
Substances Hazardous to Health-위해물질건강관리법.
■ Carbon filter combined with HEPA filter.
■ Horizontal airflow with efficient scavenging effect across the whole worktop.
■ All metal construction with high quality polyester-epoxy powder coated finish.
■ Easy to install, versatile, economical - supplied also with its own
trolley for ‘mobile’ applications.

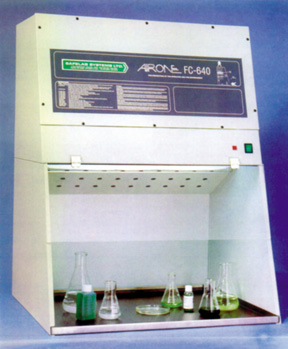

Portable chemical fume cupboard in medical laboratories, pharmacies, schools, colleges,
universities. Fitted with HEPA filter it is ideal for powder handling / weighing
in media kitchens, microbiology labs. Fitted with Carbon Filter adopted by
Histopathology-, Public Health- and Pharmaceutical laboratories.
특징 (Features)
* Portable Compact형 (w67 xd61×h88 cm)으로 설치공간의 최소화 경제형임.
Table to Table, Room to Room
* 투명하고 넓은 2단접이식 Front Methacrylate Sash(앞문)로 편리한 작업에 쉬운작동.
* High Quality - Beautiful - Strong Body : 고급 Polyester-Epoxy Powder Coating이 된
All metal 구조임.
* Stainless Steel Worktop with Round Edged Lip :
오염을 극소화 하고, 엎지러진 내용물이 밖으로 흘러내리지 않도록 Lip(턱)이 있는 작업판.

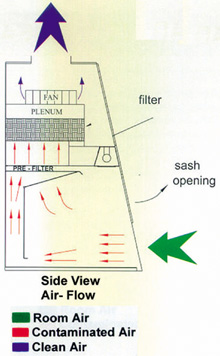

* Horizontal Airflow에, Gasflow를 유도하는 Back-baffle을 통하여, Upper Section에서
Filtering 정화된 공기는 Top Blower/Fan을 통해 Room으로 Recirculation 됨.
* 합리적인 Gas-Filtering System : Filter 교체가 용이한 Body System.
1×Pre-filter → 1×Main-filter (Option) → 1×Blower/Fan → Room.
* 용도에 따라 HEPA-filter나 Security Carbon-filter를 Main Filter와 교체가능 (Option)
* Filters 에 대해서는 본 Page하부와 본 Hood Section 뒷부분의 “Safelab-Filters” 를 참조.
* 안전 가시경보 장치 : Visual (red) Adustable Airflow-Alarm
* Blower-motor 는 Brushless / Sparkless (방폭모타)로 Centrifugal 형임.
* Gas를 실외로 배출할 수 있는 Duct설치도 가능한 배출구 (Φ15Cm)도 있음.
용도 (Applications)
* Ideal for Media kitchens-Microbiology labs, Medical labs / Dental Surgeries,
Bacteriology / Pathology / Public health / Pharmaceutical Labs, Microelectornics,
Clean-room Work, Powder Handling, Schools & Unversity.
규격 (Specifications)
* Filters : 1×Pre-filter, Size “A”, 1×Main Carbon Filter Size “A” (Option)
* On/Off Switch : Mains / Light / Blower Fan
* Microswitch : On Front Panel
* Noiseless : 소음이 거의 없이 조용함 (60dB 이하)
* Fuse : 2×Mains (0.5A)
* 경제적인 전력소모 : 170W, 0.8A, 230V/50Hz
* 조명등 : 형광등 18W
* Dimensions : Internal - w64×d60×h45 cm, External - w67×d61×h88 cm
|
