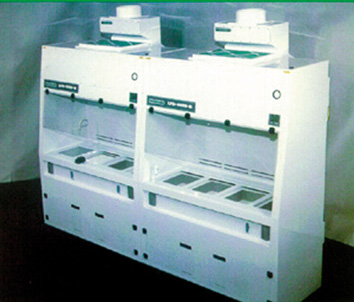

" SAFELAB" : All-PP Laminarflow Ducted Workstation for Strong-acids, with Heavy-duty and Each 1 of Partricle-& HEPA-filters, “LFE-types”, with Heavy-duty and Each 1 of Partricle-& HEPA-filters, “LFE-types”

For Works of Strong-Acids, Semi-conductors, Wafers, Works in Clean-room,
Trace Metal-analysis Labs, Environment, Laboratories & Many other Applications

■ Hinged front clear acrylic sash, covering half the 28” high opening when closed.
■ Top section incorporates HEPA/ULPA wood frame nonmetallic filters
■ Blower with speed control device to allow for desired air flow setting.
■ Rear mounted plenum & top located exhaust collar.

Designed for ues in a variety of applications even where high concentrates
of acids are used. Its superior design & craftsmanship provides optimum
protection to the operator. (the process & the environment in manufacturing of
semiconductors & wafers, in clean rooms, and trace metal analysis labs.).
Constructed entirely from all-white stress-relieved corrosion resistant
polypropylene, all heat welded to form a ridged structure.

특징 및 용도 (Features & Applications)

* 기기 전체가 무부식 ALL- Polypropylene / Heat welded One-piece /
  Heavy-duty / NO-metals 의 Ducted Air-Exhaust (가스를 대기중으로 배출) System임.
* Multi-Use : 다방면에서 다용도로 사용되나, 특히 Strong-Acids 작업용,
              반도체 분야 /Semi-conductors & Wafers, Clean - room 내에서의 작업,
              Trace Metal-analysis 및 Environment 분야에 최적임.
* 3 x Models : 폭 1200mm, 1500mm,&1800mm-types :
  본체와 일체형인 무부식 ALL-PP Base-stand 겸 Storage Cabinet 포함.
* 각종 기능/용도 확장 추가용 ALL-PP Accessessories 선택형
* Recommended Gas-Extractor Fan :
  기본으로 내장된 Blower Fan. 보다 확실한 Gas-배출을 위하여 외부(지붕) 설치용
  ALL-PP Extractor Fan “S25” or “S-30” 을 사용 함이 효과적임 (Optional Addition).

규격 (Specifications)

* Constructon : Heat Welded ALL-PP One-piece Body 에 Grey / Beige or White 색.
* Door : Hinged Front Clear Acrylic Sash, Covering Half the 28” High
          Opening When Closed.

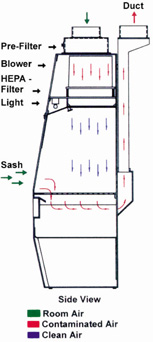

* Vertical flow Body-top Section :
  Top 정상 Air-inlet ⇒ Prefilter ⇒ Blower fan ⇒ HEAP filter ⇒ Working Chamber
 · 1 x Particle-prifiter “DP-140”, 90% Effliciency : Body-top 정상의
   Air-inlet 부분에 위치.
 · 1 x Laminarflow Blower Fan with Speed Control Device to Allow for
   Desired Airflow Setting.
 · 1 x Laminarflow HEPA Filter, Efficiency 99.997 % > 0.3 μ
 · 1 x Safety Light-system
* Heavy PP worktop (in 2 Removable Sections)
* Rear - Connections From Sump to Exhaust Duct-system & Duct-connection.
* ALL-PP Base-stand / Storage Cabinet with Doors : Body와 일체형.
* 1 x DWYER Minihelic Pressure Gauge-indicator.
* Sizes : 3 x Models (폭:1200, 1500, 1800mm형)가 있으나 폭(W)이외의
  모든규격은 동일함.
  LFE1200 형의 External : w1275 x d966 x h2440 mm with Duct-connecitons.
* On / Off Switches for Blower & Light-system, 115V/60Hz or 230V/50Hz.

CAT No.	Description	단위/갯수	Price[VAT포함]
SA.S25	FUME HOOD,LAMINAR,ACC. GAS EXTRACTOR	EA/1	4,103,200원
