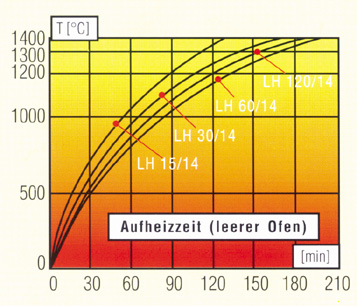

■ Short heating up times due to heating from 5-sides and Very good temperature uniformity
■ High grade asbestos-free and Energy saving insulation of microporouse plates and
   lightweight refractory bricks.
■ Heating elements on support tubes for free heat radiation
■ Casing of galvanized sheet steel
■ Thermocouple PtRh-Pt, type S

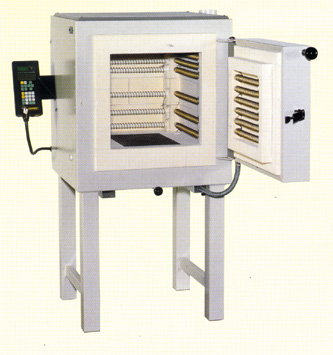

Can be supplied with capacities of 15 to 120 liters and operating temperatures of 1200,
1300,and 1400 ℃. This furnace have heat permeable silicon-carbit cover plate
to protect the bottom heating, and switchgear mount on the back of the furnace.

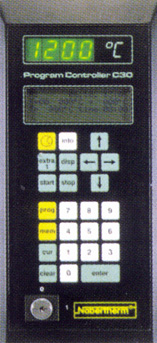

Two types of controller ; C5 features programmable start delay time, heating-up
ramps and dwell time. ; C30 features 9 programs with 18 individual programmable
segments, LCD display, and digital interface RS 485 for linking to a PC.
Delivery incl. base frame, two meter cable and CEE-plug.

* Models : LH15/.., LH30/.., LH60/.., LH120/..
* 에너지 절약형 단열재 : 고품질의 Microporous Plates와 경량의 내화벽돌
* Heating Elements가 Support Tubes 위에 감겨 자유방사
* 5면 가열 방식으로 최고온도 도달 시간이 짧고, Chamber내 온도가 균일함.
* Thermocouple PtRh-Pt, type S.
* 바닥이 가열되는 것을 방지하는 Heat Permeable Silicon-carbit Cover Plate
* 배출관이나 Catalyst를 위한 보조관이 있는 Exhaust Opening
* Bottom damper, Door Contact-switch, 전기로 뒤편에 내장되어 있는 Switchgear가 있음.
* 두가지 Type의 Program Controller + Switchgear ;
  1) C5  Type  : Start Dealy + Heating-up Ramp + Dwell Time
  2) C30 Type : 9 Set Programs Memory with Each 18 Segments, 날짜와 시간
                Programming, LCD Display, 자동 경보음. 전원을 켜고 시작을 지정할 수
                있는 자동 타이머PC와 연결할 수 있는 Digital Interface RS485
* Base Frame, Cable 2 m, CEE-plug 포함.
