■ High grade asbestos-free and Energy saving insulation of microporouse plates and
   lightweight refractory bricks
■ Casing and tilting frame of galvanized sheet steel.
■ Heating elements on support tubes for free heat radiation in furnace chamber
■ Thermocouple NiCr-Ni, type K(K../10) or PtRh-Pt, type S(K../13)
■ Crucible of ISO-graphite, two meters cable and plug(K4/13 with CEE-plug) included.

Compact design and Top quality materials.
1, 2 or 4-liter crucibles plus a maximum furnace chamber temperature of 1000 or 1300 ℃
means a wide range of products for melting a wide variety of alloys. Heated from
two sides. Extremely easy operation thanks to the integrated Controller C6.
Precise temperature control and equipped with the features required for melting and
holding non-ferrous metals-no more and no less. The features of Controller C6 ;
extremely simple and straight forward operation, Programmable heating-up ramp,
LCD-display with actual temperature, Reproducible accuracy better than ±3 ℃ and
several electronic safety components, e.g. fault indication, automatically switch off.

* 에너지 절약형 단열재 : 고품질의 Microporous Plates와 경량의 내화벽돌
* Galvanized Sheet Steel 재질의 Casing과 기울일수 있는 Tilt Frame 구조
* ISO-graphit Crucible 포함.
* Cable 2 m, Plug(K4/13 with CEE-plug) 포함.
* Heating Elements가 Support Tubes 위에 감겨 자유방사
* 가열되는 시간과 용융시간이 짧다.
* 양측면 가열 방식
* Thermocouple type K(NiCr-Ni, 1000 ℃) 또는 type S(PtRh-Pt, 1300 ℃)
* C6 Program Controller + Switchgear :
 · 1℃, 1분 단위로 정확하게 Program.
 · 실제 온도가 표시되는 LCD Display
 · One Heating-up Ramp 시간 조절
 · Reproducible Accuracy better than ±3℃

Labotherm™  K1-series, 1 Lit., Crucible : A6
* Outer dimensions : w620×d580×h620 mm
* Voltage : 230 V 1/N
* Power : 3 kW

Labotherm™  K2-series, 2 Lit.,  Crucible : A10
* Outer dimensions : w620×d580×h620 mm
* Voltage : 230 V 1/N
* Power : 3 kW

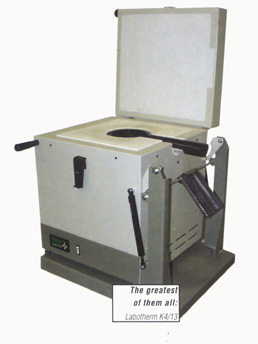

Labotherm™  K4-series, 4 Lit., Crucible : A25
* Outer dimensions : w700×d630×h670 mm
* Voltage : 230V 1/N (K4/10), 400 2/N (K4/13)
* Power : 3.6 kW (K4/10), 5.5 kW (K4/13)
