■ High-grade insulation, Asbestos-free and Energy-saving
■ Extremely short heating-up times
■ Temperature uniformity(△T) up to ±10 K
■ High-quality heating wire coils in ceramic plates, for protection against
mechanical damage(Tmax  1100 ℃) or heating coils in support tubes(Tmax 1280 ℃)

Blacking dies, dies etc. Two controllers type : Controller C5/S5 features
programmable delay, ramp and dwell time. Controller C30/S30 with LCD display
features 9 programs, each with 18 segments. PtRh-Pt thermocouple, type S(C5/S5) or
NiCr-Ni thermocouple, type K(C30/S30).The geometry(deep, law, wide) of Multitherm
N7 ~ N17/HR. Ideal for the heat treatment of

* 재료(Materials)의 열처리를 위한 다목적 전기로
* 상하 가열방식(1100 ℃)/ 3면 가열방식(1280 ℃)
* 에너지 절약형 단열재 : 고품질의 Microporous Plates와 경량의 내화벽
* Door가 수직으로 개폐되고 내부 관측창이 있음.
* 뒷면에 Vapour Vent
* Heating Element가 Ceramic Plate에 내장(1100 ℃) 되어 있거나, Ceramic Tube에
  감겨 있음(1280 ℃).
* Thermocouple :
 · C5/S5   : Type S, Platinum-rhodium-platinum
 · C30/S30 : Type K, Nickel-chromuim-nickel
* 두가지 종류의 Program Controller + Switchgear :

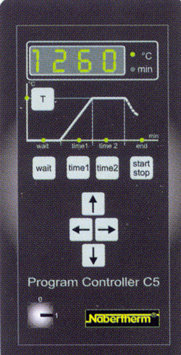

 1) S5/C5   : Start Delay + Heating-up Ramp + Dwell

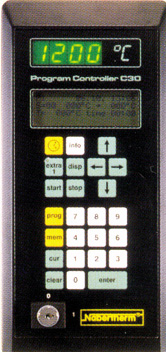

 2) S30/C30 : 9 Programs, Each with 18 Segments, Programming of Date and Time,
              시작시간 자동 타이머, 자동 경보, Digital  Interface RS 485 for
              Connection to a PC

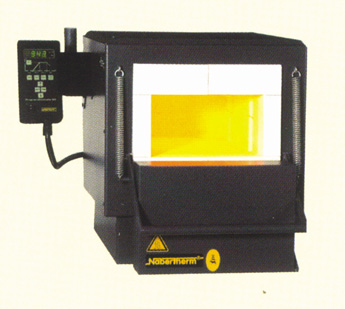

Multitherm™ N7 & N7/H, 7 Lit.
* Inner Dimensions : w230×d250×h120 mm

Multitherm™ N11 & N11/H, 11 Lit.
* Inner Dimensions : w230 × d350 × h140 mm

Multitherm™ N17 & N17/H, 17 Lit.
* Inner Dimensions : w230×d500×h140 mm
