■ Engineered and programmed to maintain a slight negative working pressure
(-0.05 in H2O)
■ Effective containment / isolation of potrentially hazardous toxin,
organisms, etc.
① Completely sealed system with automatic negative pressure control

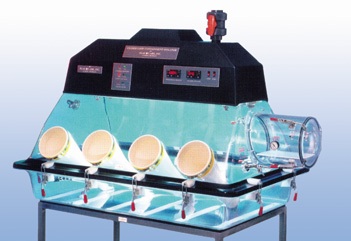

Negative pressure gloves box features easy to clean, highly radiused corners ;
stainless steel support cart with gas tank support tracks ; clear acrylic construction ;
bright fluorescent light system ; manual house exhaust valve for rapidly
venting the isolator ; two pairs of glove ports for multiple operators ;
white Hypalon gloves; ② large, easy to read control panel with digital controllers
and LED status lights. The internal atmosphere is continually filtered by
two HEPA filters. Filters are rated at 99.9997% efficiency. These isolation units
may be coupled together for multiple station work processe. They are large
enough for four sets of gloves ports(operators).
특징 (Features)
* 인체에 유해할 수 있는 미생물이나 Toxin 등의 약품을 효과적으로 격리하고자
할 때 Automatic Negative Pressure(진공)를 이용하여 완벽하게 Sealing 해줌.
* Biocontainment level III.
* 진공상태(-0.50 in H2O)의 작업환경을 유지하도록 공학적으로 설계된 시스템으로
내부의 공기가 효율 99.9997 %의 두 HEPA Filters에 의해 계속 여과된다.
* 챔버내 압력이 -0.55 in H2O 이하로 내려가면 Programmable Logic Controller가
자동으로 공기공급 밸브를 열고, 유입되는 가스는 HEPA Filters를 통해 여과된다.
* 내부 압력이 Set Point에 도달하면 밸브는 자동으로 잠긴다.
* 투명한 아크릴 구조
* Digital Control Panel과 LED Status Lights.
* Gas Tank Support Tracks(Option)가 있는 Stainless Steel Support Cart
* Inlet/Outlet HEPA Filtration, 형광등, 수동 배출가스 밸브, 2쌍의 Glove Ports,
Hypalon Gloves 포함.
규격 (Specifications)
* Capacity : 2 ~ 4 인용, 1,157 Lit.
* Weight : 135 kg
* Inner Dimension : w142×d89×h69 cm
* Outer Dimension : w208×d119×h135 cm
|
