Microprocessor Technology
■ Selection of Key Parameters
■ Data Storage and Print-Out
■ Calculation from Measurements
■ Count-Down Function
■ User Instructions in the Display
■ Temperature Compensation

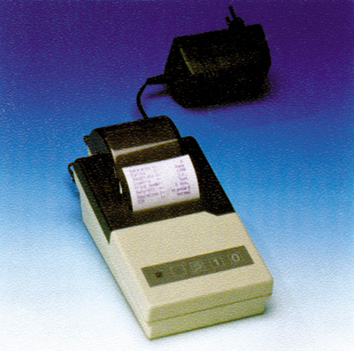

■ Printer-/PC-Connection
■ Automatic Zeroing
특징 (Features)

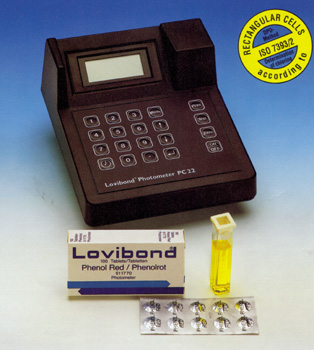

* 다목적 수질 성분 측정용
* Tablet Reagent의 사용에 따라 40여가지 성분 측정
* Water/Waste Water 분석을 위해 특별히 설계된 Microprocessor-controlled,
Multi-wavelength Analyser
* Field 및 Lab.에서 모두 사용 가능
* Foil Keyboard : Acoustic Feedback Beeper, Scratch-resistant,
Water-resistant and capable of withstanding attack by Acids and Solvents.
* 전장부(Electronic Components)와 광원부 및 Cell부는 완전히 차폐되어 보호됨.
* Count-Down Function : 측정 전에 일정한 주기의 Colour Reaction이 필요한
경우를 위해 사용됨.
* Data Storage and Print : 측정 결과는 Date, Time, Code number등의
데이터와 함께 저장 및 출력될 수 있음. Up to 1000 sets of results
may be stored.
* Auto-Check : 시스템이 켜질때 마다 광원부(Optical Component)의 기능에 대한
Self Diagnosis Check 수행.
* Status Warnings : 비정상적인 Operating Condition을 일으킬 수 있는 다양한
조건들을 감지하여 Warning Signal과 함께 필요한 조치를 Display 해줌.
* Temperature Compensation : 적정 온도 조건을 만족해야만 정상적인 측정 과정이
진행될 수 있게 함.
규격 (Specification)
* Measuring time : Approx. 10 seconds
* Display : 4-Lines, 16 Digit Alphanumeric LCD Display
* Optics : Temperature Compensated Light Diodes,
Filter/Photosensor Amplifier in a Protected Cell
* Wavelength Area : λ1=470mm, △λ(nm)=30
λ2=528mm,(Filter) △λ(nm)=30
λ3=580mm, △λ(nm)=30
λ4=605mm, △λ(nm)=30
λ5=660mm, △λ(nm)=30
* Interface : RS232 Interface for Printer or PC-connection
* Operation : Acid and Solvent resistant Foil Keyboard with Beeper
* Power supply : Supplied with 9V NiCd-Accu and
External 15V-mains Adaptor Integrated
overload protection
* Measuring capacity : Approx. 120 minutes
* Measuring tolerance : <1% of full scale reading
* Dimensions : Approx. h92×w180×d220mm(instrument),
Approx. h95×w440×d340mm(case)
* Weight : Approx. 0.8kg(Instrument), Approx. 2.5kg(Case)
* Humidity : Approx. 30~90% rel.(non condensing)
* Shut-off cycle : Approx. 20 minutes after the Last
Operation with no loss of data
* Auto-check : by Switching the ON/OFF key
* Memory capacity : Approx. 1000 sets of data
* Operating temp. range : Approx. 0~50℃
* Electro-magnetic radiation : CE Conformance
|
