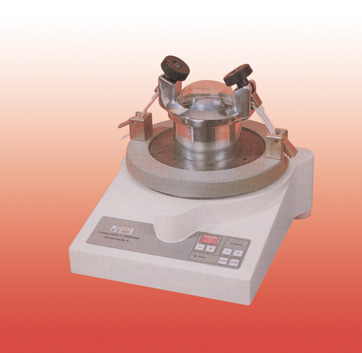

■ The vibratory micro mill achieves size reduction though the combination of
impact and friction.
■ Electromagnetically powered mortar generate vibration
■ Vibrations are transferred to the grinding balls via the grinding stock
■ The impact energy of the grinding balls can be controlled to suit the
application
특 징 (Features)
* Designed Window to observe the grinding process
* Designed Adjustable vibration amplitude so vibration energy can be adapted to
suit sample being ground
* Designed Maintenance-free vibratory system isolated and independent of the lab
bench
* Designed Loss-free grinding in closed vessel guaranteed, even in suspension
* Designed Modular system permits simple conversion to dry-or wet-sieving
* Designed Digital timer
규 격 (Specifications)
* Maximum feed size : 〈 5 mm * Feed quantity : 0.1~10 ml
* Final fineness : 5~10 micron
* Electrical : 100-120/200-240V/1, 50/60Hz, 115W
* Weight : 21 kg * Dimensions(w×d×h) : 370×400×200mm
Grinding Sets (용도에 맞게 선택)
- Agate 99.9% : Density 2.65g/㎠, Abrasion resistance good, Soft to medium-hard
sample
- Sintered Corundum 99.7%(Alumina) : Density >3.8g/㎠, Abrasion resistance
fairly good, Fibrous sample
- Zirconium Oxide 94.8% : Density 5.7g/㎠, Abrasion resistance very good, Fibrous,
abrasive sample
- Tempered steel : Density 7.9g/㎠, Abrasion resistance good, Medium Hard, brittle
sample
- Stainless steel : Density 7.8g/㎠, Abrasion resistance fairly good, Medium Hard,
brittle sample
- Hard Metal(Tungsten carbide) : Density 14.8g/㎠, Abrasion resistance
very good, Hard, Abrasive sample
용 도 (Application)
* For fine milling of dry lab samples or solid in suspension
* For homogenization of emulsions or pastes
|
