■ No
DNA-contamination by 254nm wavelength UV-light
exposure
■ Operator protection from UV emissions and
Beta-radiation

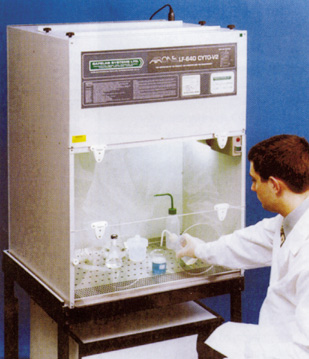

This is primarily a laminar flow cabinet designed to protect the integrity of
samples by preventing cross-contamination during sample preparation through a
Class II-type vertical laminar downflow of HEPA-filtered air during the first
phase - eliminating in the second phase unwanted DNA sequences by 254nm wavelength
UV-light exposure - destroying all contaminant DNA molecules in minutes.
This double function of the cabinet makes it the ideal contamination free,
portable, sterile PCR workstation - which will also protect the operators from the
harmful effects of UV/light exposure, Beta-radiation and contamination from samples.
특징 (Features)
* PCR Chamber로서 DNA work에 최적의 환경을 제공할 뿐만 아니라, Laminar flow
cabinet으로서 제약자나 의학 종사자들의 독성물질로부터의 노출을 방지하고,
동시에 환경도 보호함.
* UV light + UV timer + UV resistant sash panel 장착.
* No DNA contamination due to 254nm UV-light.
* Protection from UV-emission and Beta-radiation.
* Filtrete prefilter B + HEPA B 포함.
* 여과된 공기의 일부(약 30%)를 배출하므로써 Room air cleaner 기능.
* 필터로 여과된 공기의 약 70%가 재순환되면서 Laminar Flow 형성.
용도 (Applications)
* 독성물질 취급, 제약분야에서 약품 무게측정/분주, 독성학, 세균학, 미생물학,
병리실험실, 공중 보건실험실, 생물공학, 항생물질학, 유전공학, 전자학, 반도체
레이저, 통합된 회로, 웨이퍼 등.
규격 (Specifications)
* Visual (red) adjustable air flow alarm
* Brushless/sparkless fan, Centrifugal
* Filter efficiency L 99.999% DOP Test
* Light intensity : Min. 8000 hours lamp, 650 Lumen
* Internal dimensions : w640 × d450 × h520 mm
* External dimensions : w670 × d600 × h900 mm
* Lighting : 18 W
* Noise : < 60 dB
* Voltage : 220V, 0.8 A, 170 W
|
