■ Up to 144 sets of results can be accessed with infrared
   remote operation
■ Variable Measuring Time from 30 Minutes to 99 Days
■ User-friendly Means of BOD Measurement
■ Data Evaluation Software with Statistical Functions
■ Electronic storage ensures confidence in results
  and other measurement data
■ Complies with GLP(Good Laboratory Practice)/ISO 9000

* Respirometric Determination of Biochemical Oxygen
  Demand(B.O.D.)
* Organic substances in the sample are oxidized
  microbially by the use of oxygen (O2).
  The resultant carbon dioxide (CO2) is absorbed by
  potassium hydroxide(KOH) and this results in  a pressure
  drop in the system which is proportional to the BOD value.
  This is detected by the IR-Sensor, logged by
  the BOD-Sensomat
  and converted directly into mg/l of BOD.
* Intelligent Measuring Systems ET 500 & ET 510 구성 :

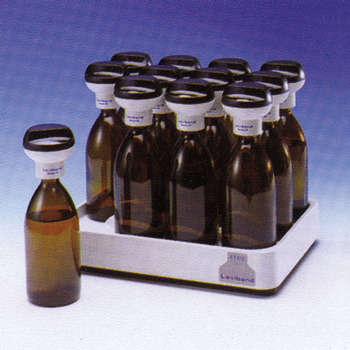

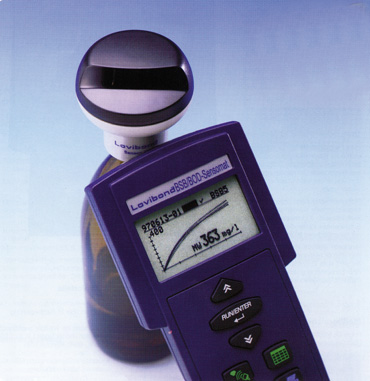

 ㆍIR-Sensor
    B.O.D. Bottle 위에 뚜껑 형태로 간단히 끼워지는 B.O.D.
    측정 센서 Measurement Device인 동시에 Storage Unit 역할
    Together with the Sample Bottle, it forms a Mobile,
    Self-contained Measuring Unit.

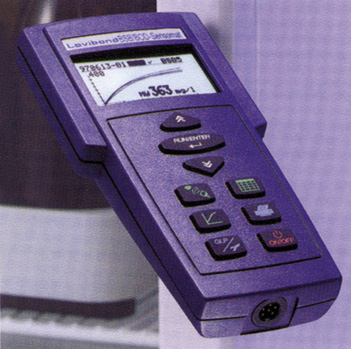

 ㆍBOD-Sensomat : Portable "ore”of the System
    한번의 버튼 조작으로 모든 측정 데이터를 기록 및 조회
    간단하고 장력한 Evaluation 및 Documentation 기능 제공
 ㆍInductive Stirring-System
    주기적인 Acceleration과 Stirring Rod의 Centering을 통하여
     Water Sample과 Air Phase 사이의 최적화된 Gas-exchange를 보장

(BOD-Sensomat)
* Parameter : BOD n (DIN 38 409-H 52)
* Measuring Ranges : Programmed : 0...40 / 80 / 200 / 400 /
                    800 / 2000 / 4000 ㎎/ℓ B.O.D
* Test Duration : 30 Minutes to 99 Days Measurement
* Intervals : 10 Seconds to 24 Hours
* Mesurement points : 1 to 144 Operable in Parallel
* Data Storage : 180 to 360 Data-Sets(Data, Time,
   Measurement, Identification of sample
   & measurement point)
* Data security : 100% fixed
* Memory display : LCD 128 ×64 Pixel / 6 rows
* Auto-Start Function : on/off switching facility,
    measurement begins after pressure drops, or maximum
    waiting period
* Software : Calculation of Mean, Standard Deviation,
    exclusion of individual rogue samples
* Approval Marks : TUV/GS, CE, UL, CUL(UL/CSA)
* Degree of protection : IP42, DIN 40 050
* Batteries : 3 mignon/type AA, alkaline 1.5V,
              1 Lithium CR 2430
* Ambient temperature : (Storage) -25 ... +65℃ /
                        (Operation)+5 ... +40℃
* Weight : Approx. 390g including Batteries
* Dimensions : L100 ×w200 ×h45mm

(IR-Sensor)
* Principle of Operation : Manometric/Respirometric with
    Electronic Pressure, relative pressure measurement,
    IR-transmitter. receiver ±1% of measured value ±1 hPa
* Range : -500/+350 hPa(=mbar)
* Resolution : ±1 hPa
* Data Storage : 180 to 360 Data-Sets(Data, Time,
   Measurement, Identification of sample & measurement point)
* Data Security : 100% fixed
* Memory display : LED for recognition
* Batteries : 2 Lithium CR 2430(approx. 2~5 years)
* Approval Marks : TUV/GS, CE, UL, CUL(UL/CSA)
* Degree of Protection : IP 54 DIN 40 050
* Ambient Temperature : (Storage)-25℃ ... +65℃/
                        (Operation)+5 ... +40℃
* Weight : 90g including Batteries
* Dimension : Φ70 mm, 70 mm in Height
