Features / 중요 특징

* 5-Channel Cassette Pumphead(Option) 장착 가능, 3 x Pumpheads(추가 2개)까지 장착 가능한 Stackable 모듈형임.
* Full Microprocesseor Controls & Programmable Soft Start.
* One step Volume-Calibration and Self-prompting LCD display,
Footswitch(Option).
* Adjustable Speed and Reverse-flow Option for Various Dispensing & Aspirating Operations : 속도 조절식, Suction을 위한 역방향(Reverse-flow)작동 가능.
* 기존의 “OMNISPESE- “와의 차이점 / 추가된 새로운 기능ㆍ특징 :
(1) Built in constant flow rate dispenser.
Fully Programmable Delivery of Preset VolumeOver a Specific Period of Time with a Display of the Cumulative Volume Delivered.

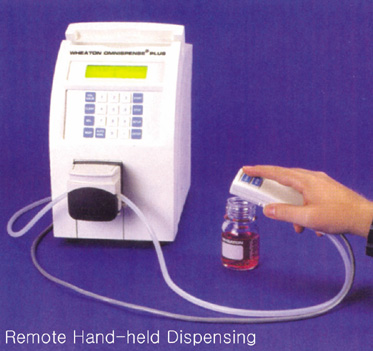

(2) Remote hand held tubing holder with a start and stop switch.
Excellent for Remote Filling or for Use Under a Hood. (See Photo)

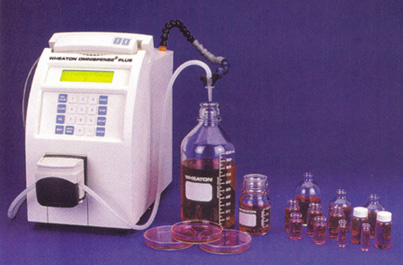

(3) Built in tubing support.
Conveniently Holds the Tubing for Filling Containers. (See Main Photo)

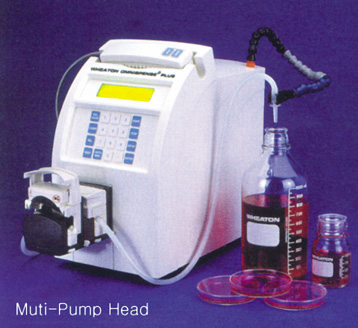

(4) Supports up to three pumpheads. For Easy Multiple Dosing.
(5) Expanded tubing sizes. The new pumphead supports many additional tubing sizes.
(6) Dispense pull back feature. Automatically Dispenses the VolumeSet then Reverses to Relieve Pressure in the Tubing thus
Helping to Eliminate Drips.
(7) LARGER brighter LCD display. For More Comfortable Viewing.  (8) Memory store up to 34 setups. For Quick Recall.
(9) External connection for remote start/stop. Also Supplies Pump Running / Stopped Feedback.
(10) 5-Channel Pumphead Cassette와 Multiple Pump Heads 장착가능
(Option) :
5개의 Tubings를 동시에 사용할 수 있는 5-Channel Cassette Pumphead나, 2개의 Pumpheads를 추가 설치 (총 3개)할 수 있는 Stackable 모듈형의 다기능 자동 디스펜서임.

Specifications / 중요 규격

* Standard Stackable Pumphead가 기본 Set로 공급됨: 두께 2.3 mm까지의 Tubings
  사용 가능.
* 두께 1.5 / 1.6 mm Tubings 용 : 5-Channel Cassette Pumpgead와
  Stackable Pumphead는 별도로 공급됨(Option).
* 광범위한 Tubing-Sizes 사용 가능.
  (1) 1.5 / 1.6 mm 두께의 Standard Tubings : 내경 ID 0.8∼8 mm Tubings 수용
  (2) 2.3 mm 두께의 Thick wall Tubings : 내경 ID 2∼8 mm Tubings 수용
* Accuracy: As High as 1.0 % at Midrange.
* Dispensing-Ranges & Flow rate (max.) :
  Examples. 2 mm ID Tubing : 0.2∼300 ml, 0.9 ml / sec.
            3 mm ID Tubing : 0.5∼1,800 ml, 4.0 ml / sec.
            6 mm ID Tubing : 1.5∼6,000 ml, 18 ml / sec.
            8 mm ID Tubing : 2.0∼10,000 ml, 36 ml / sec.
* Dimensions : 15.2 × 30.5 × h 25.4 cm, 6.8 kg
* Electrical Power : 220 ∼ 240 VAC, 50 / 60 Hz, 70 Watts
