"DAIHAN" 5.증류 및 Filtering 장치/ Human DI System( Distillation & Filtering System )
|
|
 |
| 5.증류 및
Filtering 장치 ( Distillation & Filtering System ) |
| 5.증류 및 Filtering 장치 ( Distillation
& Filtering System ) |
 |

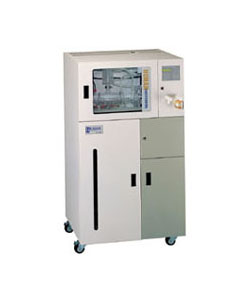

Human DI System
• All parts are made of borosilicate glass
• Quartz sheated heating elements
• Built-in sterilisation & cleaning functions
• Progamming by 2 steps of water quality for the filter exchange
• Automatic recycling at 2nd setting value
• Very simple to exchange the Filter-Pack (one touch molding type)
• Built-in ROM, RAM, CPU, Microprocessor
|
| |
Human DI 290
|
Human DI
490 |
Human DI
890 |
Human Double 290
|
| istillation |
Single
Distillation |
Double
Distillation |
Product
Flow Rate |
-
Distillation
- Ultra Pure |
2
L/Hr
75L/Hr |
4
L/Hr
75L/Hr |
8
L/Hr
75L/Hr |
2
L/Hr
75L/Hr |
| Controller |
Microprocess one Touch technology
|
| Water
Quality Display |
16
x 2 Characters Backlight LCD Digital Display |
| Water
Quality |
- Distillation : Approx x 1.6㎲/cm - Ultra Pure
: Up to 18.3㏁-㎝
|
| Distillation
System |
|
| -
Material |
①All
parts borosilicate glass ② Quarts sheated
heating element |
| -
Function |
①Auto
low water cut-off ② Auto degassing of CO2
gas
③ Auto level sensor ④ Water level control |
| -
Sterilising |
-
Sterilisation of the condensers by steam |
| -
Cleaning |
-
Cleaning of evaportator automatic water change |
| Ultra
Pure System |
①
Filter Exchange indicator : Programmable by 2 steps are below;
(1) 1st alert message : warning message for the filter
exchange
(2) 2nd alert message : exchange message for the
filter exchange
② Auto recycling : Auto recycling at 2nd setting value
③ Manual recycling : Enable to recycle for maintain ultra pure
④ Built-in ROM, RAM, CPU Microprocessor
⑤ Very simple to exchange the filter-Pack ( Molding Type ) |
| Analyzing
Data |
-
Pyrogen : - , Bacteria : - , TOC : 0 - 5 ppb
- Metal ion : less than 0.1 ppb, - Silicate : less than 0.1 ppb |
| Water
Tank |
Built
- in 40L Tank |
| Standard
Accessories |
Prefilter,
Power UP Pack , 40L Tank, Hand Level . Manural |
| Optional
accessories |
①
254/185 UV Lamp
② 0.2㎛ Final filter
③ Phosphate Catridge : Prevents scale formation in the condeser
④ Water Softner : Reject hardness in the tap water
⑤ PVDF ¼Dispensing gun |
| Power |
220V,
1.5KW |
220V,
3.0KW |
400V,
6.0KW |
220V,
3.0KW |
| Dimensions
(W×D×H) |
800×460×1440mm
|
|
|
|
|
|
|
|
