"DAIHAN" 4. 생산용 순수 제조장치, Silent Pilot System
|
|
 |
| 4. 생산용 순수
제조장치 |
4. 생산용 순수 제조장치
|
 |
|

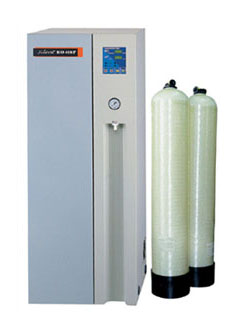

Silent Pilot System
• This water purifying method is to extract pure
water (RO) by applying the pressure into the RO membrane which contains
0.0001- 0.001 micrometer pore size and this is highly effective in
removing several impurities around up to 95 - 99% from water : Metal ions,
Organics, Paricles, Micro organism.
|
 |
Silent RO 200P |
Silent RO 300P |
Silent RO 400P |
Silent RO 500P |
| Certified
mark |
Certified
ISO 9001( NO : K - 920 ) |
| Product
flow rate |
150
to 250 L/Hr |
250
to 350 L/Hr |
350
to 450 L/Hr |
450
to 550 L/Hr |
| Product
water quality |
RO : 0
to 50㎲/cm , UP : 1 to 18.3 ㏁-㎝ (Option) |
| Display |
LED
digital display [RO : 0 to 200㎲/cm UP : 1 to 18.3 ㏁-㎝
(Option)] |
| Pressure
gauge |
Dia
65mm , 0 to 20kg/㎠ |
| Safety
functions |
1. Low
pressure of tap Water : Auto/manual operating modes
2. Automatic motor stop function :
① Low pressure ② Tank full ③ Suspension of tap water supply
3. Double safety function in case of water shortage :
① 1st step : Pressure S/W ② 2nd step : Motor & Pump |
| STD
accessories |
20"
Prefilter , 20" A/C filter , R/O membrane , Level sensor |
| Dimensions(W
x D x H) |
500 x 400 x 1414mm |
| Power |
220V,
50/60Hz, 1KW |
| Optional
accessories |
Pretreatment
System , 254 UV lamp , Ion-ex Vessel, Water tank |
| Noise |
Less
than 65dB |
|
Pilot System
|
|
Pilot System
|
|
Pure RO 200P |
Pure RO 300P |
Pure RO 400P |
| Certified mark |
Certified
ISO 9001( NO : K - 920 ) |
| Product flow
rate |
100 to 200
L/Hr |
200 to 300
L/Hr |
300 to 400
L/Hr |
| Product water
quality |
RO : 0 to 50㎲/cm
, UP : 1 to 18.3 ㏁-㎝ (Option) |
| Display |
LED digital
display [RO : 0 to 200㎲/cm UP : 1 to 18.3 ㏁-㎝ (Option)] |
| Pressure gauge |
Dia
65mm , 0 to 20kg/㎠ |
| Safety
functions |
1. Low pressure
of tap Water : Auto/manual operating modes
2. Automatic motor stop function :
① Low pressure ② Tank full ③ Suspension of tap water supply |
| STD accessories |
20"
Prefilter , 20" A/C filter , R/O membrane , Level sensor |
| Dimensions(W x
D x H) |
500 x 400 x 1414mm |
| Power |
220V,
50/60Hz, 1KW |
| Optional
accessories |
Pretreatment
System , 254 UV lamp , Ion-ex Vessel, Water tank |
|
|
|
|
|
|
